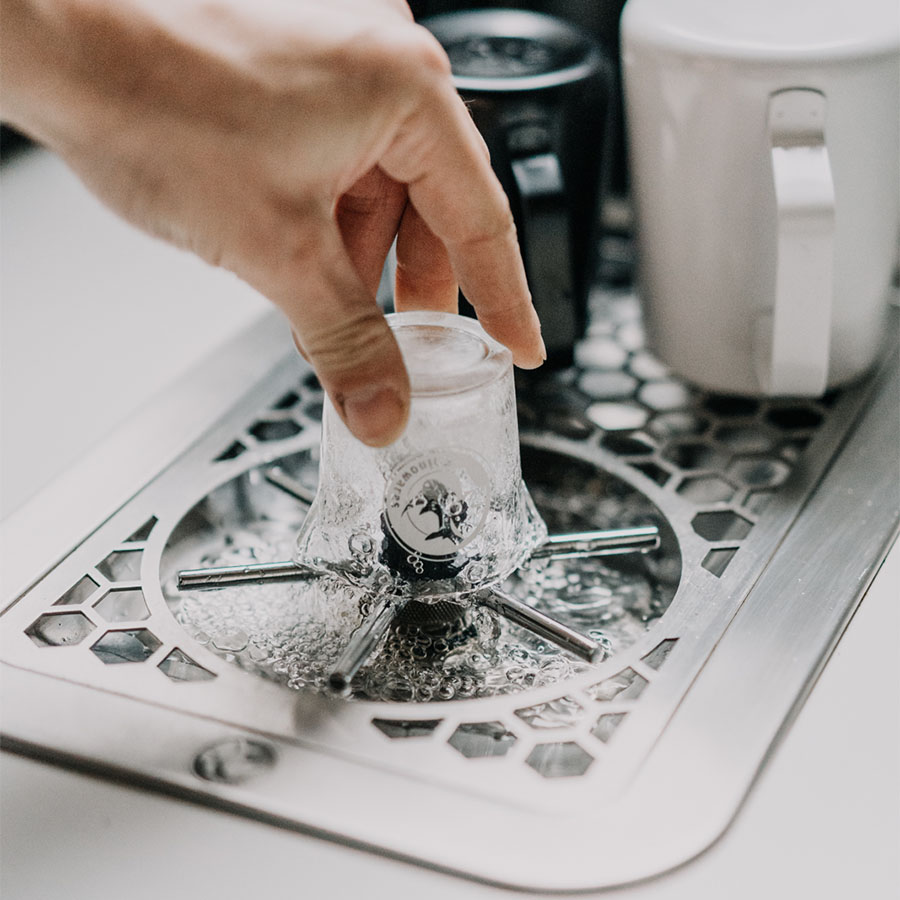

The Rhinowares Pitcher Rinser is designed to be built into the bench of busy hospitality environments. This device helps keep your workspace and milk pitchers clean and organized, saving valuable time during peak service hours.

This vessel rinser features a new honeycomb drain tray and an updated Actuator Star design, both of which help prevent liquid build-up and allow for the quick disposal of large volumes of water and leftover milk (including milk alternatives).

The Spinjet Valve sprays and spins simultaneously, delivering a more effective and robust mechanical cleaning action than a standard rinsing valve.

Please note: This pitcher rinser must be installed into your workbench and connected to your water drainage system. It is not suitable for use as a countertop or mobile device.

Installation Information:

• Depth Requirements: The Rhinowares rinsers are 40mm deep, however, this is without fittings. We recommend at least 150mm of clearance under the bench for basic connection (this includes fall for the drain hose). The actual depth may differ depending on the location of the drain, the location of the water supply, or whether you use an elbow or a straight connector.
• Installation: Due to slight variations in manufacturing design and the varying requirements of bench materials, it is strongly recommended to have the physical pitcher rinser on hand prior to cutting into benchtop surfaces. Bombora does not take responsibility for installation cut out errors and provides the sizes and dimensions as a layout guide only.
• It is recommended that a Pressure Limiting Valve (PLV) is used when installing on the mains water line.

Included:

• 1x Sink
• 1x Spin jet spray mech with star
• 1x Hexagon grate drip tray
• 1x John Guest Hose Adapter (drain hose not included)
• 1x Drain Waste Assembly

Specifications:

• Dimensions: 231mm (W) x 354mm (L) 85mm (D) (Depth from drain elbow to top of the bench.)
• Materials: Stainless Steel
• Drain Hose: 25mm (not included)
• NSF Certified
